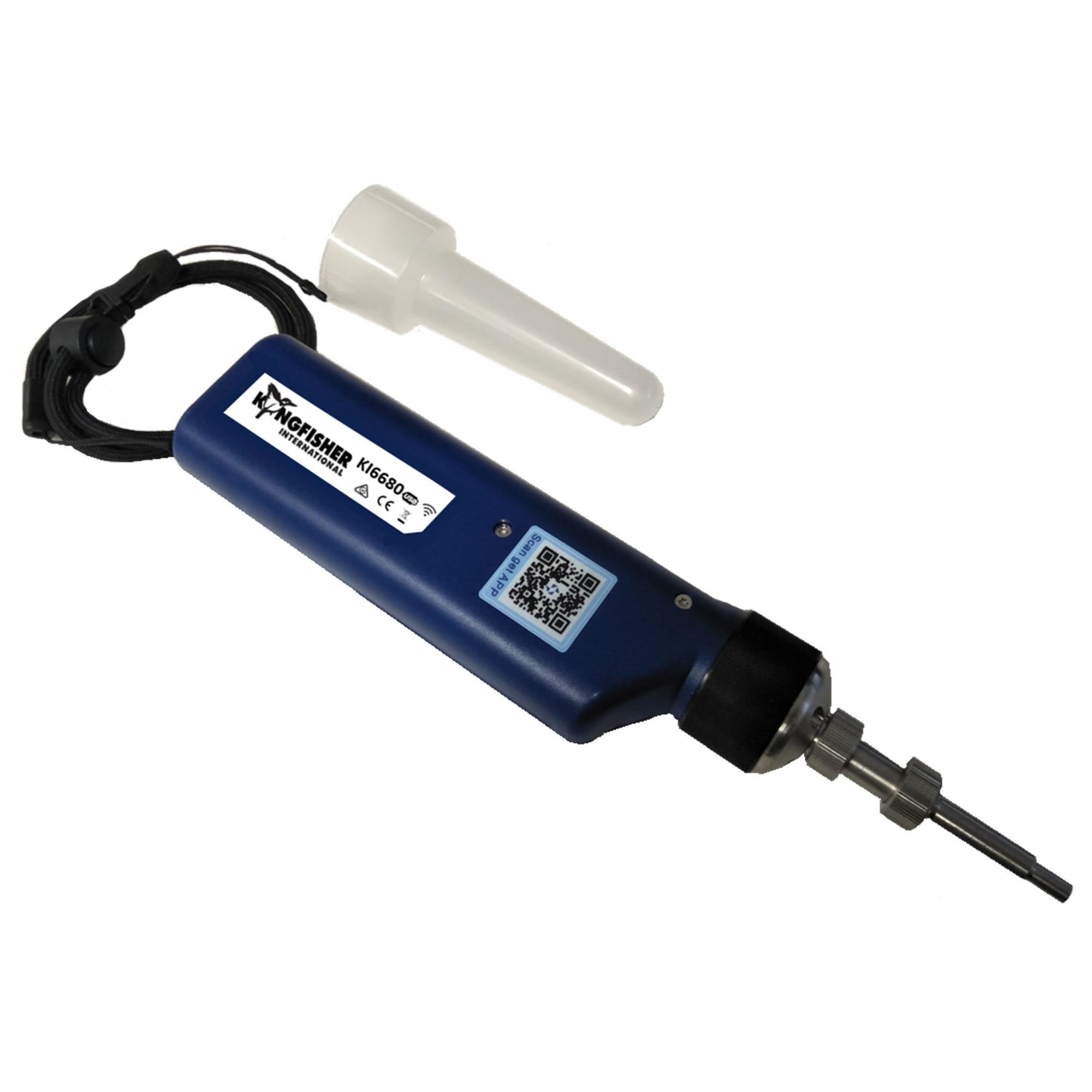

KI 6680 Fiber Inspection Probe

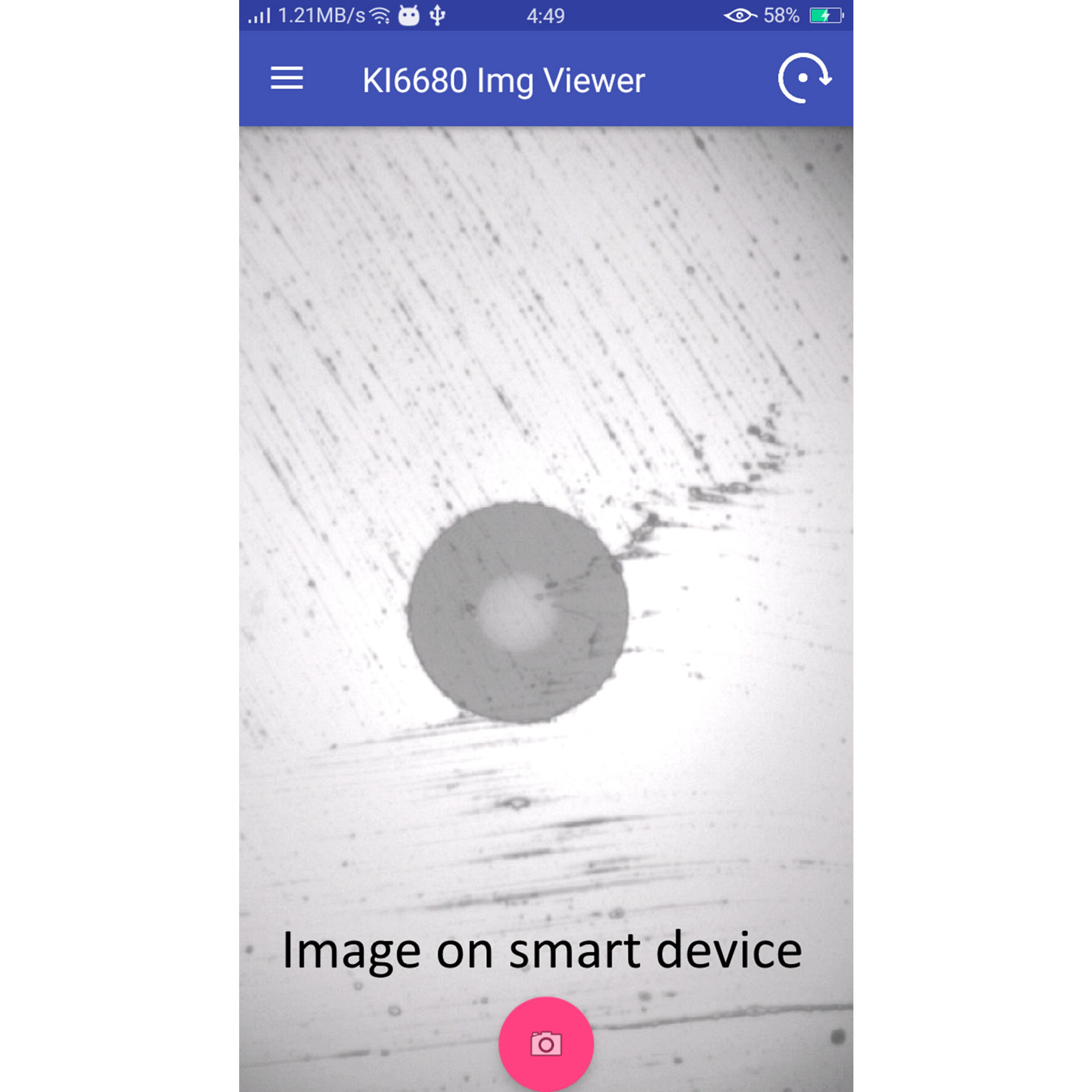

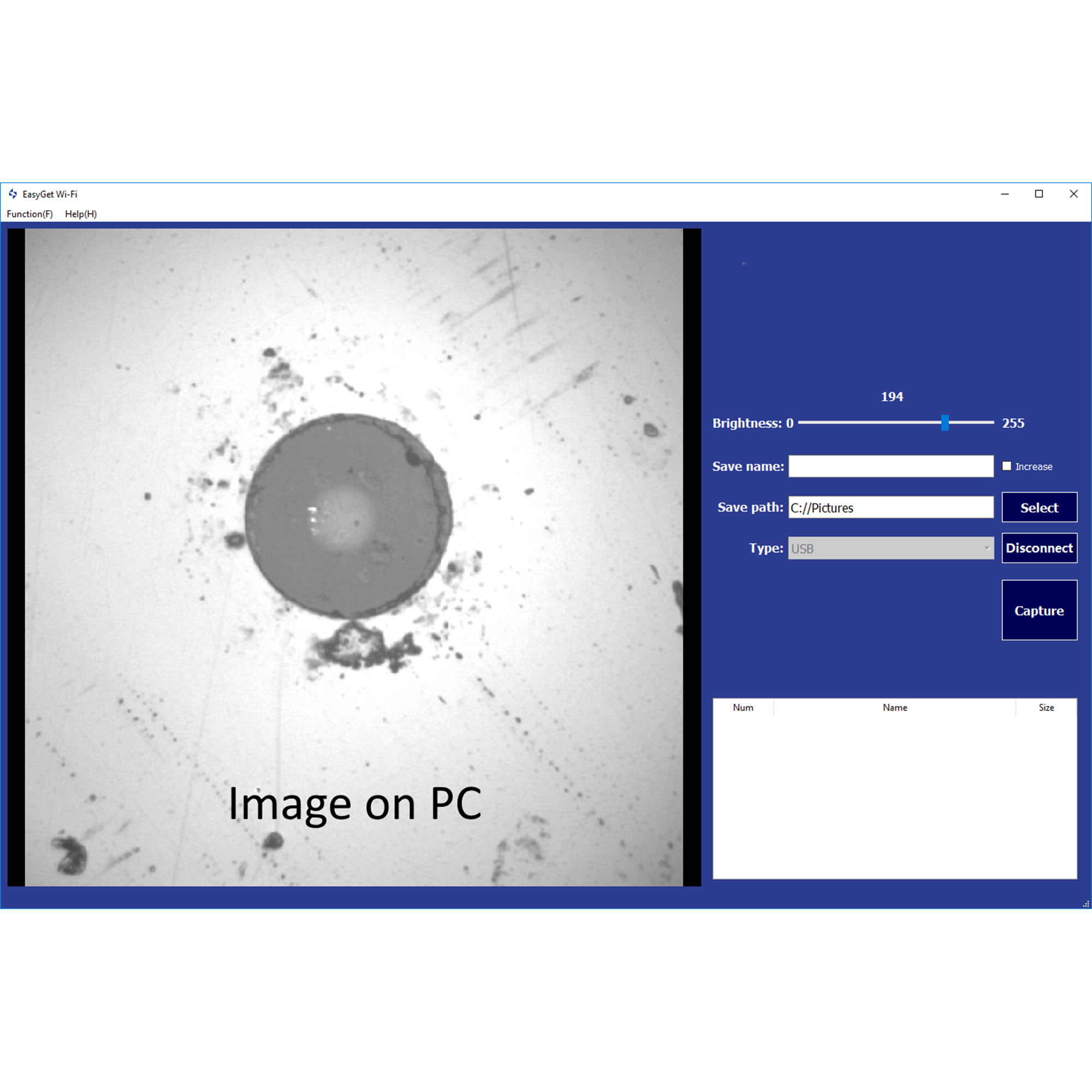

The KI6680 is a handy tool to check mated or unmated fiber optic connector end faces for dirt, condition and quality.The image can be viewed and stored on Windows, Android or iOS smartphones, tablets or laptops, via Wi-Fi or USB. Easy operation, robust construction and quality optics ensures that this equipment will enhance the performance of installation and maintenance staff.
· Simple, compact and reliable
· Captive dust/protective cap
· Long operation from built-in rechargeable battery with charging via USB-C cable

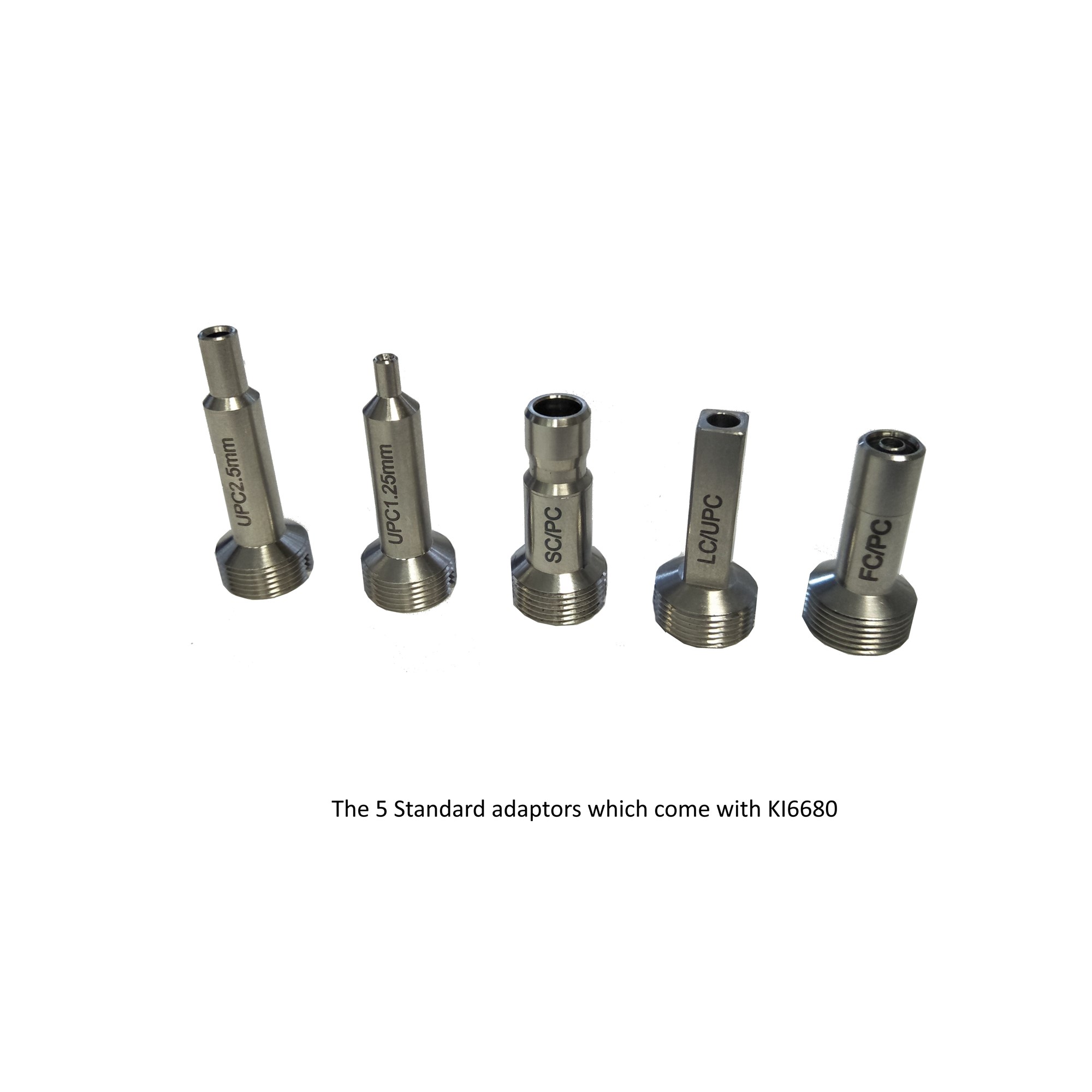

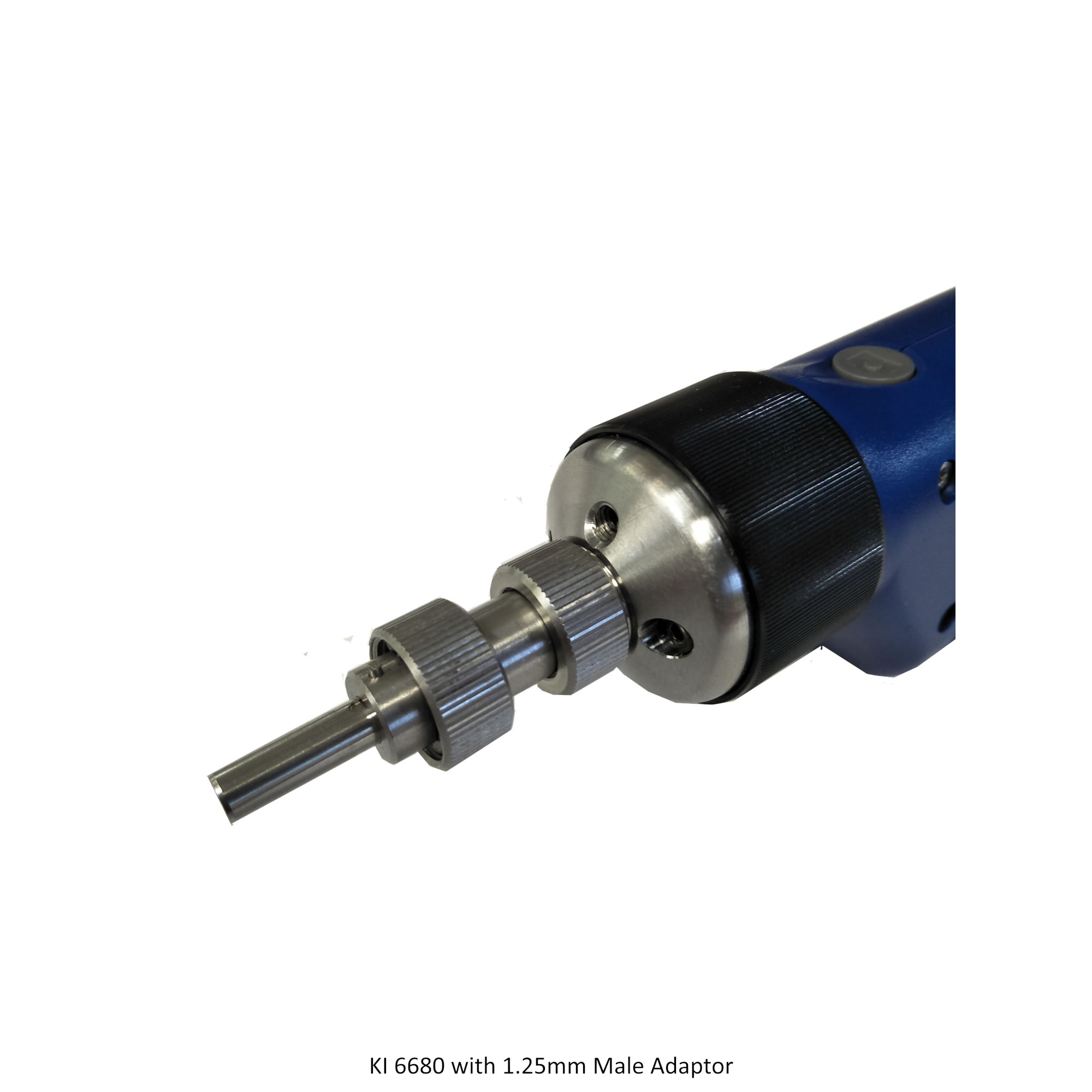

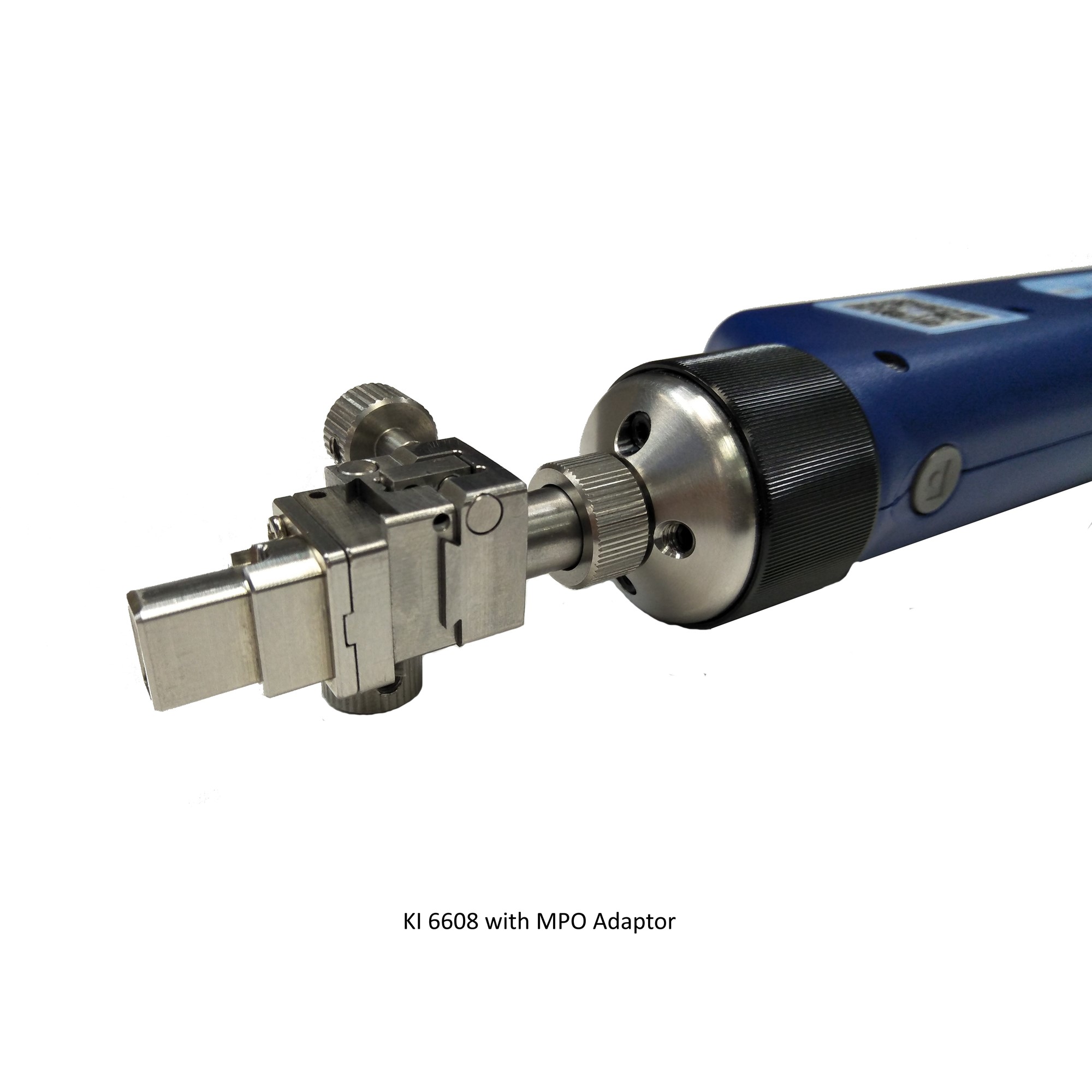

· Quick-change adaptors for male/female connectors LC, LC/APC, SC, SC/APC, FC, FC/APC, ST, universal 1.25 & 2.5 mm. Also MPO/MTP SM & MM
· Good image quality with easy focus
· Image can be centered and expanded
· On-probe image capture button
· LED torch for work in low light conditions

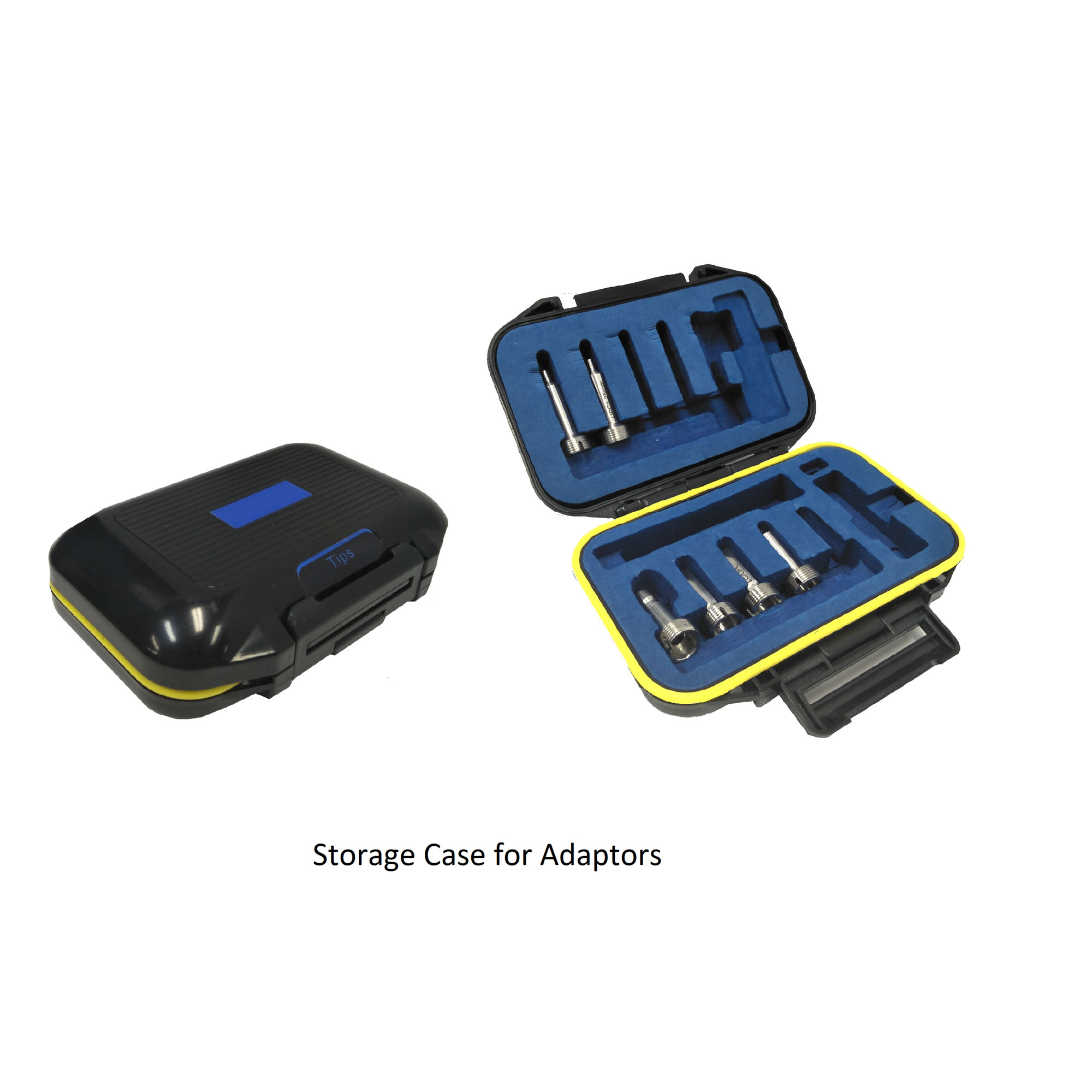

· Handy storage case for inspection adaptors
· Economical
KI 6680光纖檢查探頭
KI6680是一種方便的工具,可以檢查配對或未配對的光纖連接器端面是否臟污,狀況和質量。可以通過Wi-Fi或USB在Windows,Android或iOS智能手機,平板電腦或筆記本電腦上查看和存儲圖像。易于操作,堅固的結構和優(yōu)質的光學器件確保該設備將提高安裝和維護人員的性能。
?簡單,緊湊,可靠
?防塵/防護罩?內置可充電電池可通過USB-C電纜進行長時間操作
?用于公頭/母頭連接器LC,LC / APC,SC,SC / APC,FC,FC / APC,ST,通用1.25和2.5 mm的快速更換適配器。也是MPO / MTP SM和MM
?良好的圖像質量,易于對焦?圖像可以居中和擴展
?探針上圖像捕獲按鈕
?LED手電筒可在弱光條件下工作
?方便存放
